316LVM-1.4441-022Cr18Ni14Mo3

Specification：

ASTM F138&139/ISO 5832-1

Introduce：

There are two types of stainless steel used for surgical implants in the ISO 5832 series. The first is ISO 5832-1 and the second is ISO 5832-9, both of which are austenitic stainless steels, which are required to be free of ferrite and therefore non-magnetic. Surgical implants stainless steel mechanical properties and machinability is better, suitable for forging processing and mechanical cutting processing. Compared with other alloys, there is a greater cost advantage. Is widely used in bone plate bone nail, joint handle and other components.

Get A Free Quote Now!

Chemical Composition（%）

Carbon	Manganese	Phosphorous	Sulfur	Silicon	Chromium^A	Nickel	Molybdenum^A	Nitrogen	Copper	lron^B
0.030 max	2.00 max	0.025max	0.010 max	0.75 max	17.00 to 19.00	13.00 to 15.00	2.25 to 3.00	0.10 max	0.50 max	Balance

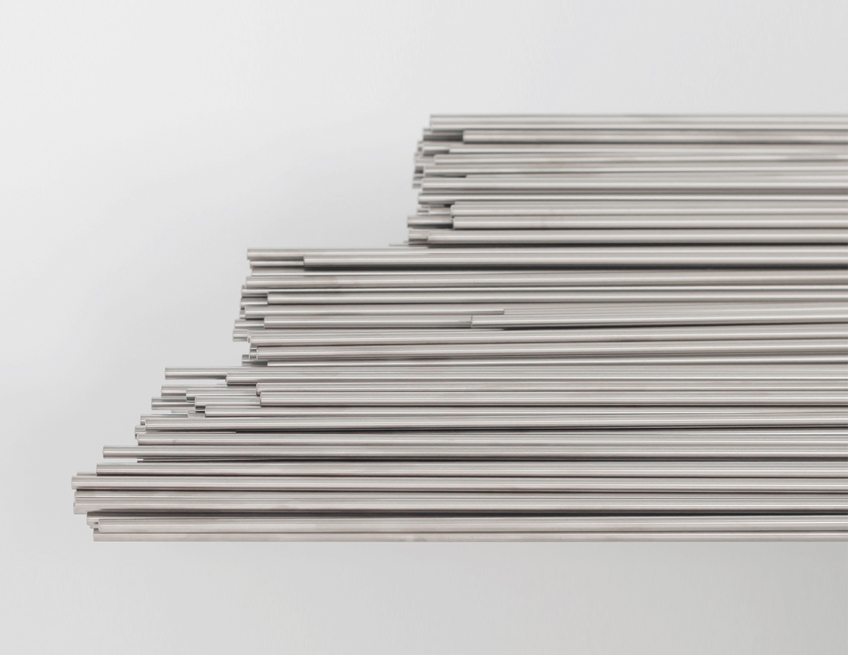

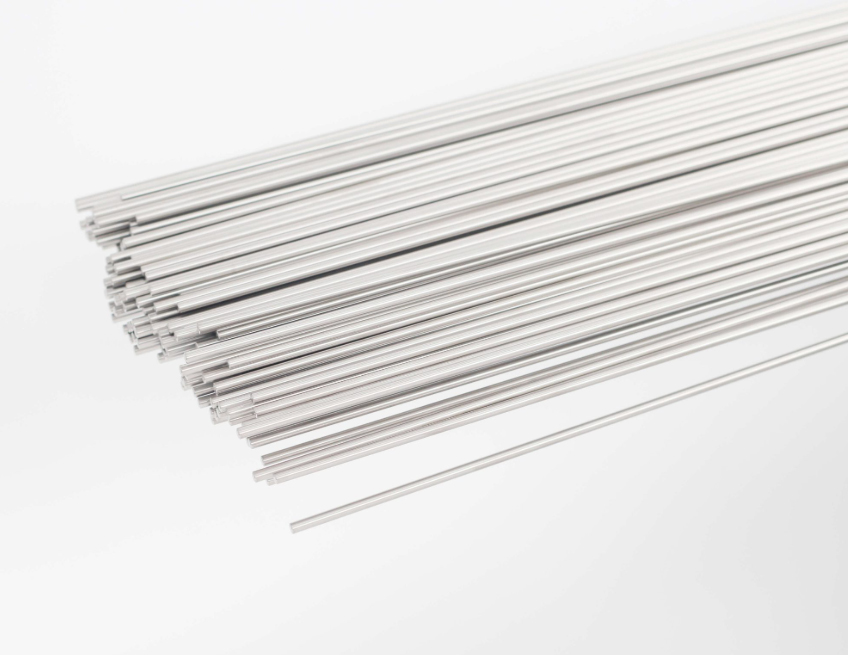

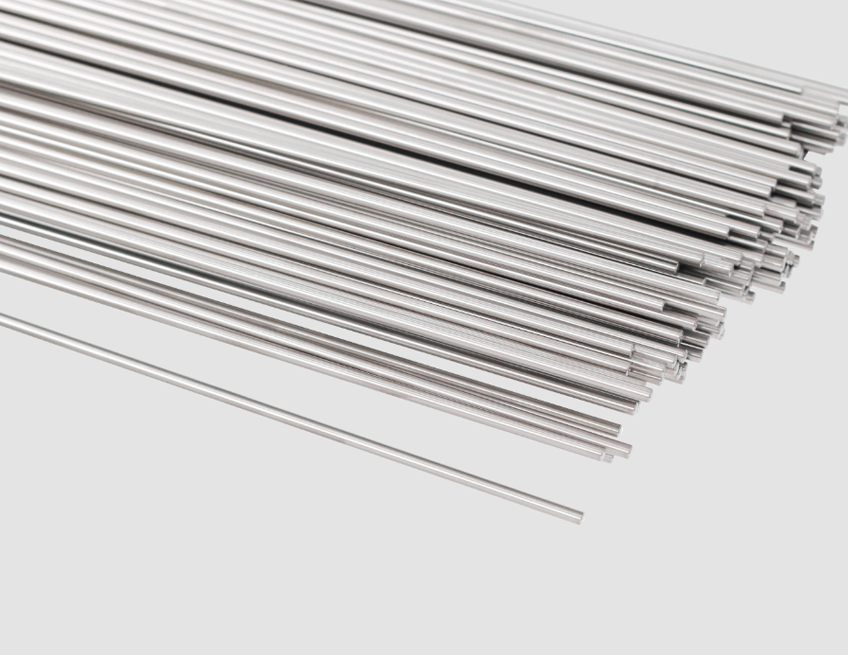

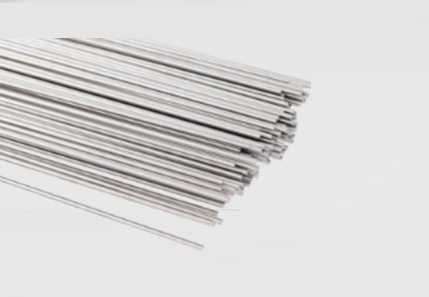

Available in bars

Stock Specifications	φ0.8-100mm	Delivery condition	solid state
UT Detection Standards Include	AA, A1, A, and B	Surface	polished bars, double-end chamfering
Tolerance	h6-h9 level (customizable)	Length	3M/piece (customizable length)

Available in plates

Stock Specifications	δ10-80mm	Delivery condition	solid state
UT Detection Standards Include	AA, A1, A, and B	Surface	bright surface, free from burrs
Tolerance	0/+0.3mm (customizable)	Length	300*500MM/PCS (width/length customizable)

Sample Display

If you need any of the above mentioned products, we can supply them directly and process the products according to your needs.
