Cocr28Mo(forge)-CCM

Specification：

ASTMF1537ISO5832-12 Alloy1/2

Introduce：

Cobalt-chromium alloy is a high-temperature alloy that was originally used in aerospace materials. Due to its good resistance to wear, corrosion and high strength,. Forged cobalt-chromium-molybdenum alloys are sometimes used in the manufacture of articulating surfaces and load-bearing components of artificial joints, ball joints, femoral stems, cemented stems in particular, and artificial spinal connecting rods.

Get A Free Quote Now!

Chemical Composition（%）

	Chromium	Molybdenum	lron	Manganese	Silicon	Carbon	Nickel	Nitrogen	Cobalt
Alloy 1 Low carbon	26,0 to 30,0	5.0 to 7,0	0,75 max.	1,0 max.	1,0 max.	0,14 max.	1,0 max.	0,25 max.	Balance
Alloy 2 High carbon	26,0 to 30,0	5.0 to 7,0	0,75 max.	1,0 max.	1,0 max.	0,15 to 0,35	1,0 max.	0,25 max.	Balance

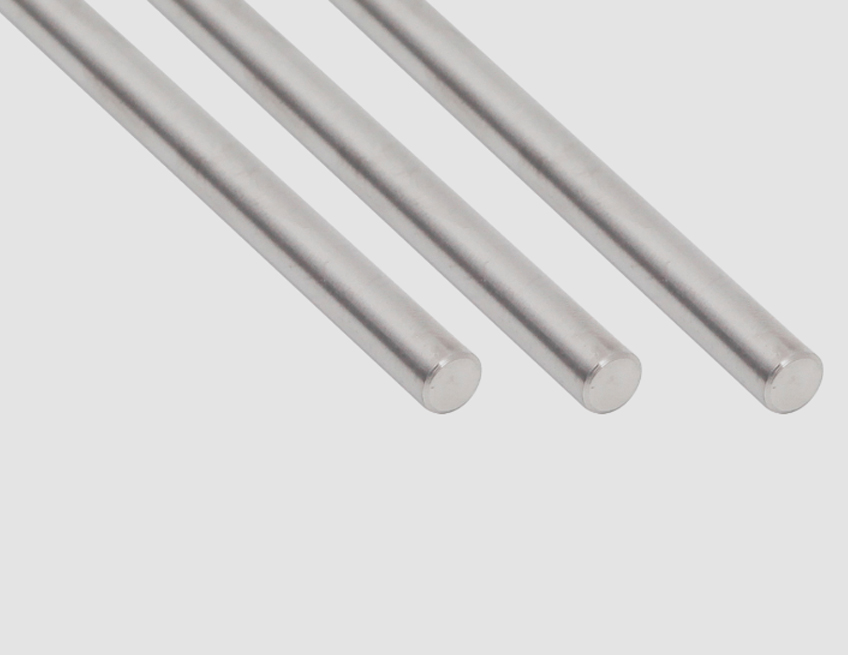

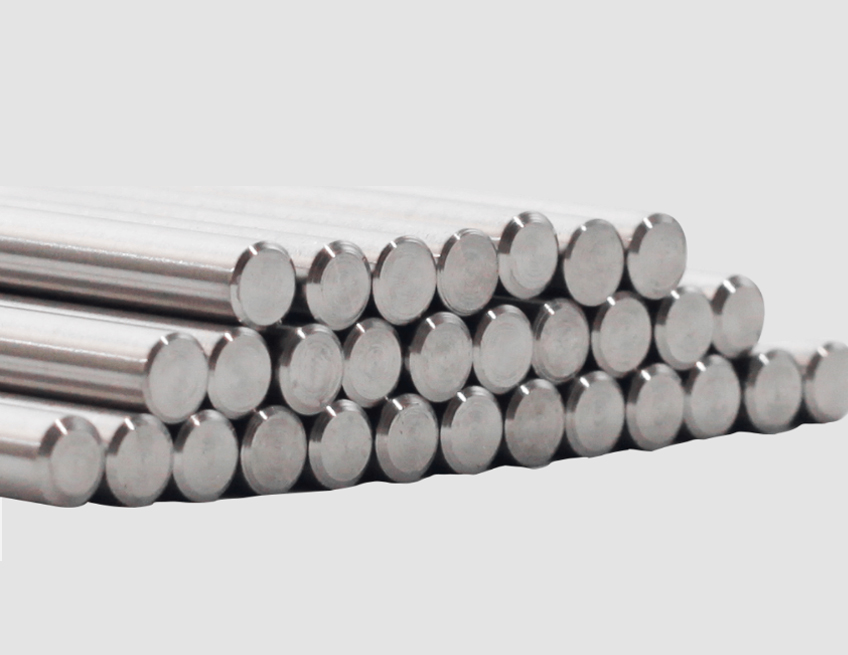

Available in bars

Stock Specifications	φ5.0-60mm	Delivery condition	solid state
UT Detection Standards Include	AA, A1, A, and B	Surface	polished bars, double-end chamfering
Tolerance	h6-h9 level (customizable)	Length	3M/piece (customizable length)

Available in plates

Stock Specifications	δ10-80mm	Delivery condition	solid state
UT Detection Standards Include	AA, A1, A, and B	Surface	bright surface, free from burrs
Tolerance	0/+0.3mm (customizable)	Length	300*500MM/PCS (width/length customizable)

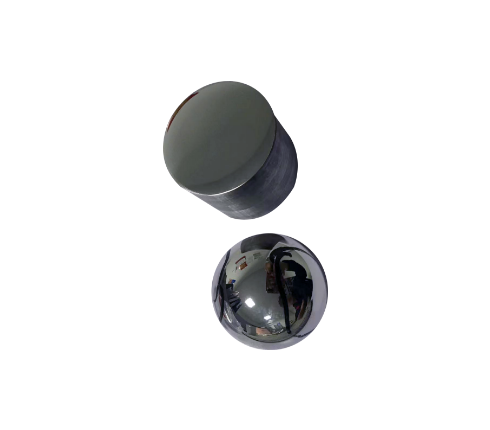

Sample Display

If you need any of the above mentioned products, we can supply them directly and process the products according to your needs.
