Ti-6AI4V -Grade5-TC4

Specification：

ISO5832-3ASTM1472

Introduce：

Titanium alloy is one of the most widely used in medical implant products. It has become the material of choice for many medical and dental applications due to its excellent biocompatibility, good fatigue strength and low modulus, and is more than half the mass of stainless steel for light weight. Commonly used titanium alloys are divided into three main categories: alpha and near-alpha/alpha+beta/beta and near-beta.

Get A Free Quote Now!

Chemical Composition（%）

Nitrogen, max	Carbon, max	Hydrogen, max^D	lron,max	Oxygen, max	aluminium	vanadium	Titanium ^E
0.05	0.08	0.015	0.30	0.20	5.5-6.75	3.5-4.5	balance

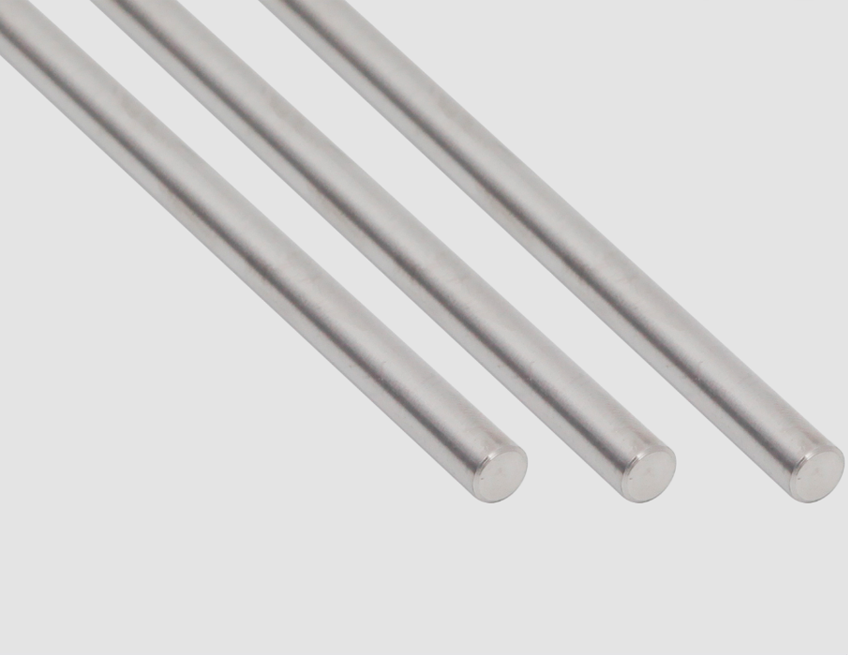

Available in bars

Stock Specifications	φ0.8-100mm	Delivery condition	solid state
UT Detection Standards Include	AA, A1, A, and B	Surface	polished bars, double-end chamfering
Tolerance	h6-h9 level (customizable)	Length	3M/piece (customizable length)

Available in plates

Stock Specifications	δ1.0-100mm	Delivery condition	solid state
UT Detection Standards Include	AA, A1, A, and B	Surface	bright surface, free from burrs
Tolerance	0/+0.3mm (customizable)	Length	300*500MM/PCS (width/length customizable)

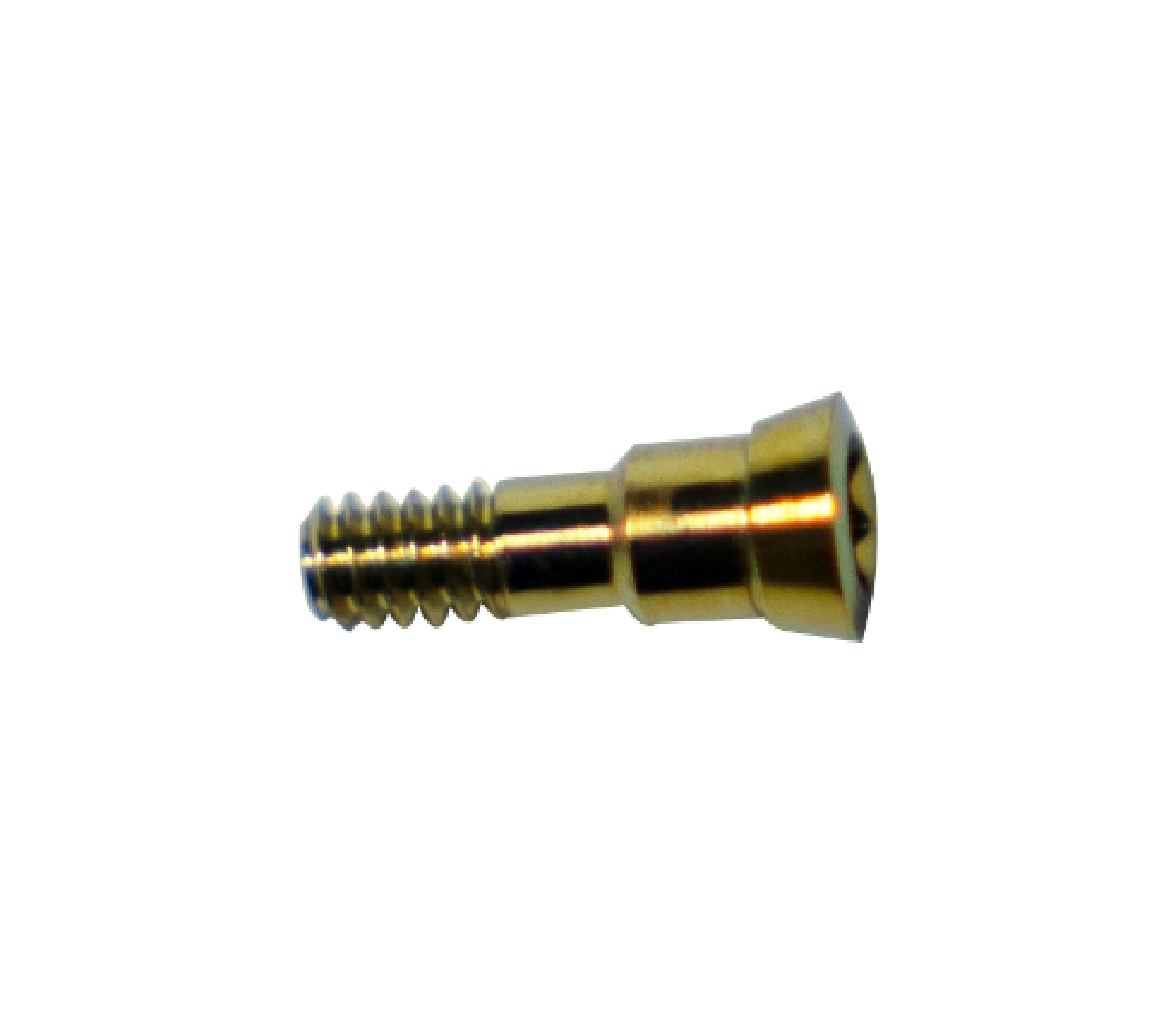

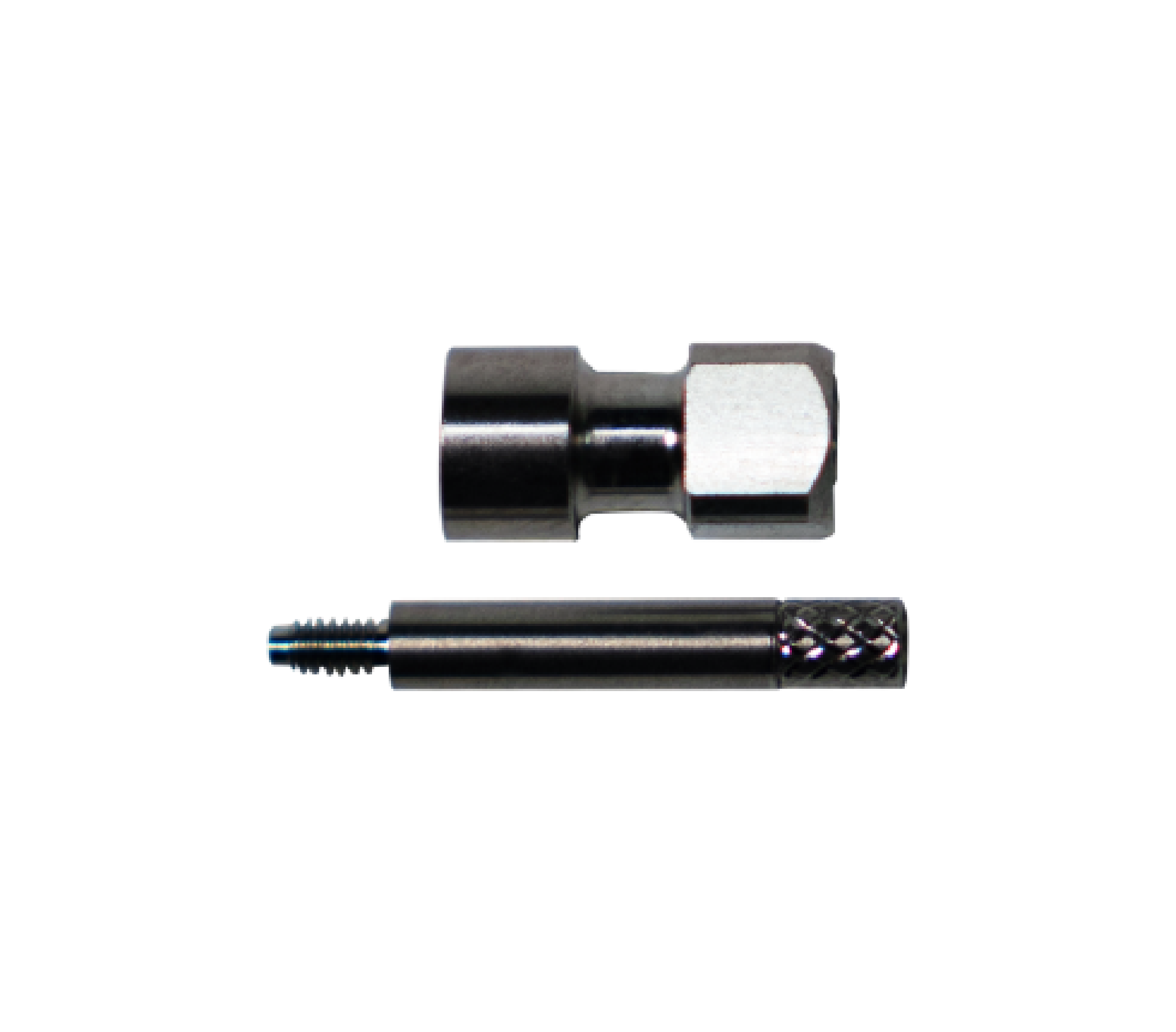

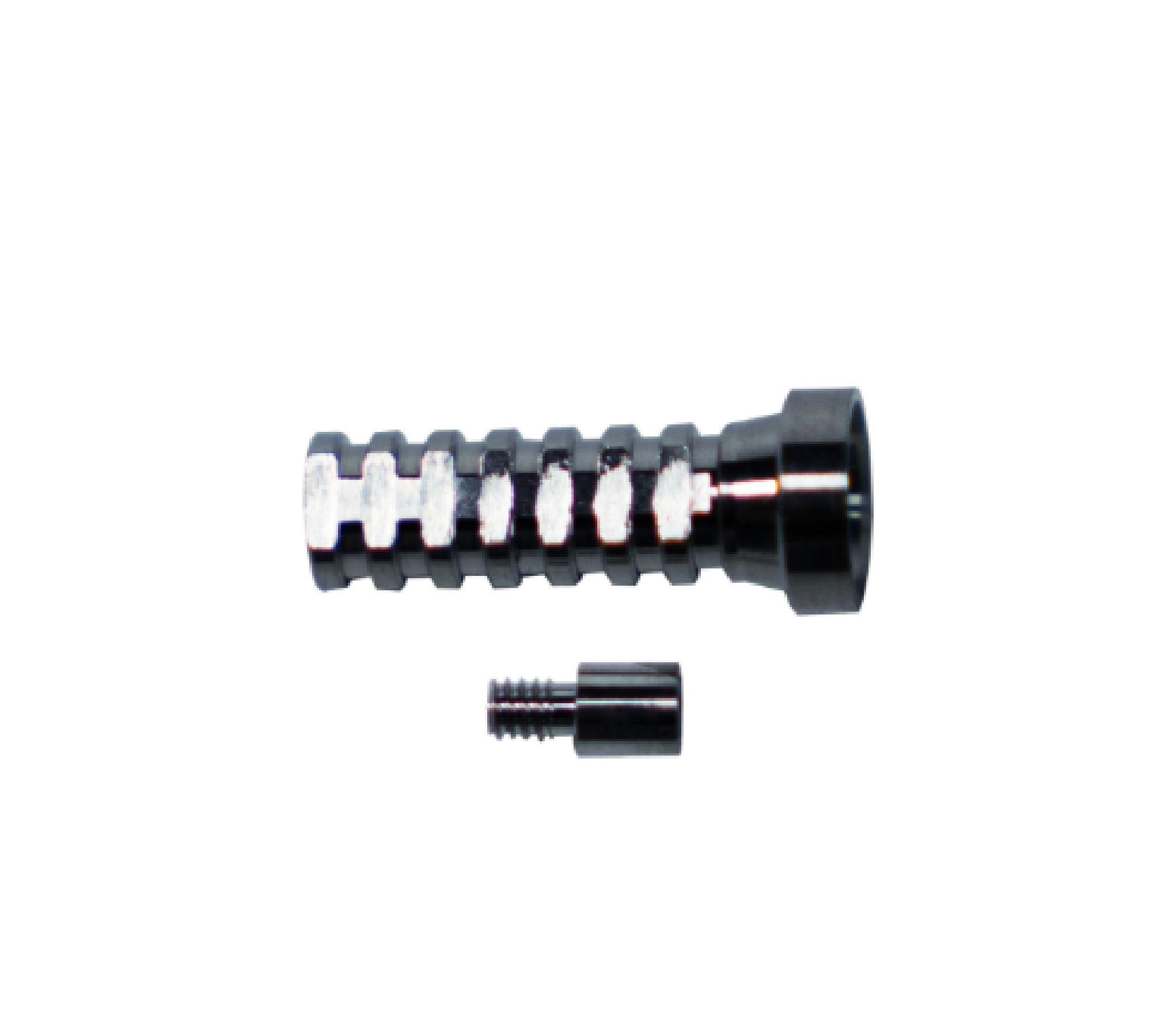

Sample Display

If you need any of the above mentioned products, we can supply them directly and process the products according to your needs.
